- No frost and no fluctuation temperature control technology (20 degrees or more)
- More precise temperature control with PT1000 temperature sensor
- With water level monitoring and automatic water replenishment function (moisture control products)
- Five-level automatic defrost function
- Logging function (touch screen)
- Level 4 password login function (touch screen)
- Historical data and historical curve query function (touch screen)
- 3 power-off mode selection functions, power-off reply, stop or restart
- With SMS alarm function (optional)
- Ambient temperature detection function
- Servo motor for more precise and stable control
- Imported carbon dioxide and humidity sensor
- With a carbon dioxide pressure stabilization system to prevent qi overshoot
- With over temperature protection, leakage protection, door opening alarm, sensor alarm and other functions
- With positive and negative control motor function
- Scalable RS-485
| Product name | Carbon dioxide culture shaker | Light culture shaker | Standard shaker |
| range of rotation | 25~300RPM | 25~300 RPM | 25~300RPM |
| Speed accuracy | Positive and negative 1 RPM | Positive and negative 1 RPM | Positive and negative 1 RPM |
| Temperature control range | 4~65°C or ambient temperature +5°C~65°C | ||
| Temperature control accuracy | Positive and negative 0.1 celsius | Positive and negative 0.1 celsius | Positive and negative 0.1 celsius |
| Temperature uniformity | Less than or equal to ± 0.5 degrees (20 to 40 degrees, when cooling is turned on), less than ±2 °C when there is no cooling | ||
| Humidity control range | 30~95%RH | 30~95%RH | 30~95%RH |
| Humidity fluctuation | ± 2%RH | ± 2%RH | ± 2%RH |
| C02 control range | 0~20% | - | - |
| C02 control accuracy | 0.10% | - | - |

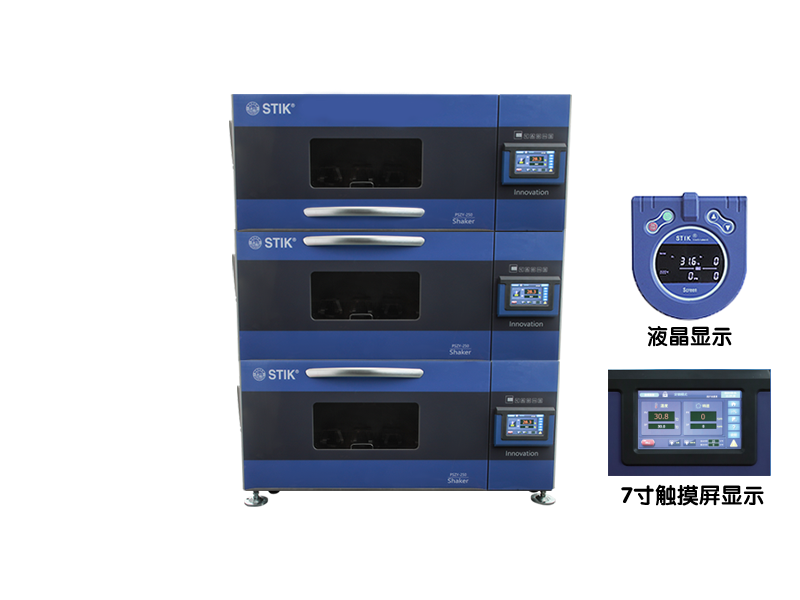

| Display method | Touch screen display / LCD display | Touch screen display / LCD display | Touch screen display / LCD display |
| Cooling power | 500w | ||
| Heating power | 750w | ||
| Controller | Fuzzy P.I.D control | Fuzzy P.I.D control | Fuzzy P.I.D control |
| The standard configuration | Fixed fixture optional | ||
| Light intensity | Standard 10000LUX, 30000LUX optional multi-level intelligent control | ||
| UV sterilization | Have | No | No |
| Box internal volume | 250liter | ||
| Rocker size（W*D）mm | 558mm*460mmDouble layer | ||
| Cavity size（W*D*H）mm | 620mm*510mm*850mm | ||
| Power supply | AC220V±10%50-60HZ | ||
| Dimensions | 765mm*807mm*1343mm | ||
| Product weight | 210KG | ||
| Model | Temperature range | Features | Display |
| PSLY-250L | Room temperature+5~65 | Standard | liquid crystal（L） |
| PSLY-250T | Room temperature+5~65 | Standard | touch screen（T） |
| PSLY-250LF | 4~65 | Standard | liquid crystal（L） |
| PSLY-250TF | 4~65 | Standard | touch screen（T） |
| PSLY-250LL | 4~65 | Illumination |
liquid crystal（L） |
| PSLY-250TL | 4~65 | Illumination |
touch screen（T） |
| PSLY-250LC | 4~65 | C02 | liquid crystal（L） |
| PSLY-250TC | 4~65 | C02 | touch screen（T） |
A test technical data is only applicable to the test results when the equipment is under no-load conditions and the ambient temperature is 25 degrees!
The appearance and parameters of a product are subject to change without notice, and the appearance of the product may be deviated due to reasons such as photography and printing. Please understand!
- 3Q
- Printer
- PC monitoring software
- Control system
Mobile phone SMS alarm
